Even at the end of lamination, tricks are needed to complete the finished product.

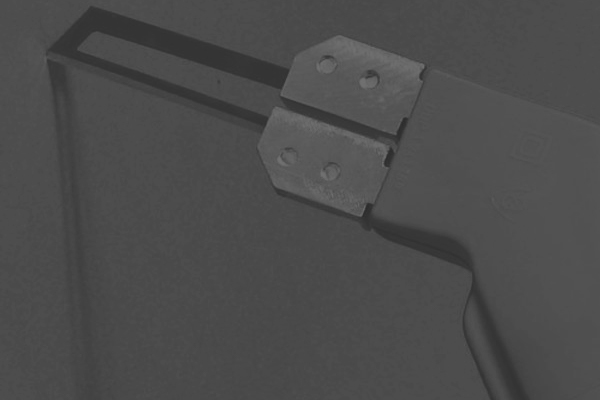

Thermocutter to be used on the edges at the end of lamination to remove excess Eva spillage.
There are interlayers that require a very precise process of reaching temperature on glass with subsequent stationing. The datalogger connected directly to a flat thermocouple placed on the surface of the glass allows the temperature rise to be monitored with consequent adjustment of the recipe so that you do not have to wait for the glass to come out to question whether the firing is correct and perhaps have to start a new test again using intuitive times and temperatures resulting in wasted time.
Also with a view to simplifying work, in order to avoid wasting time, the RCN laboratory has developed a high-performance synthetic product to be applied around the entire perimeter of the panes such as to facilitate the removal of excess material.
REVA 12 applied before each firing on the glass panes provides a clean and tidy product.
Applicato sul perimetro dei vetri da stratificare, permette di mantenere il sandwich di vetro compatto, resistente al sollevamento.
Grazie a micro-perforature agevola la fuoriuscita dell’aria durante il sottovuoto e non soffre le alte temperature.
Facile da rimuovere a fine lavoro.
Laminating bags of any size, also specially designed for special laminations, heavy thicknesses and curved glass.
Silikosoft bags have a special manual pressure closure, developed by RCN for more than 10 years. This great seal closure system is vulcanized to ensure strength even with special glass shapes or critical curves. Long life and deformation memory.
Silikosoft bags can also be produced for ACV, horizontal and vertical laminations with reinforced base and vulcanized hooks.
| UNITÀ DI MISURA | VALORI | METODO DI PROVA A NORMA | |
|---|---|---|---|
| MATERIALE | Gomma Siliconica | ||
| SPESSORE PRODOTTI | (mm) | 1,5-3 | |
| PESO SPECIFICO | gr/cc | 1,16 | DIN 53479 |
| SUPERFICIE ESTERNA | Liscia | ||
| SUPERFICIE INTERNA | Impressione tela | ||
| DUREZZA | Sh.A | 50 +/- 5 | DIN 53505 (3″) |
| CARICO DI ROTTURA | N/mm2 | 9,4 | DIN 53504 |
| MODULO AL 100% | N/mm2 | 1,2 | DIN 53504 |
| MODULO AL 200% | N/mm2 | 1,7 | DIN 53504 |
| MODULO AL 300% | N/mm2 | 2,3 | DIN 53504 |
| ALLUNGAMENTO A ROTTURA | % | 690 | DIN 53504 |
| RESISTENZA ALLA LACERAZIONE | N/mm | 40 | ASTM D 624 B |
| RESISTENZA ALLA TEMPERATURA | Picco | +280°C | |
| RESISTENZA ALLA TEMPERATURA | Esercizio | +260°C | |
| RESISTENZA ALLA TEMPERATURA USO | STATICO | -60°C | |
| RESISTENZA ALLA TEMPERATURA USO | Dinamico | -55°C |
Glass handling is a very important point in laminate production. Many glass factories are already well equipped, others need to organize glass transfers from the washing to the preparation site and then to the furnace loading/unloading area.

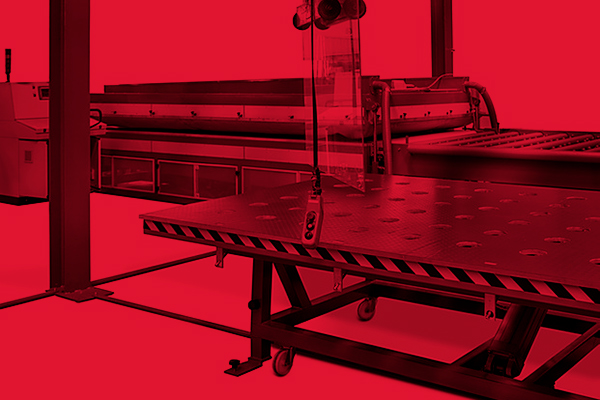

Our company offers the possibility to study and customize glass handling and/or transfer solutions. A basic point could be the table with wheels equipped with swivel casters for lifting and sliding the glass, built by our company in very simple such as to be an easy support for logistics by reducing manual operations.
Good storage of the laminating film is the basis for the successful quality of the laminate. The roll holders supplied by RCN are built to provide protection from dust and ease in unrolling and cutting the film.
Equally, refrigerated and dehumidified boxes allow controlled storage of rolls in use, especially in those areas where the temperature rises above 35°C, EVA’s point of distress.
